EPSON BrightLink 436Wi Interactive WXGA 3LCD Projector

MSRP: $1,490.00
Price: $1,475.00
You Save: $15.00
Item Number: EPS436Wi
Manufacturer: Epson
Mfg Part No: V11H536020
Condition: New

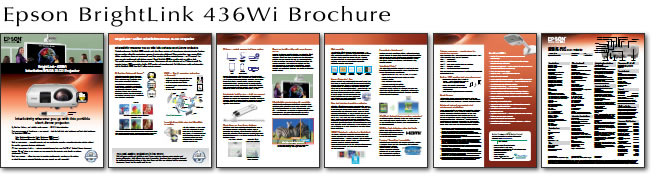

Download Epson BrightLink 436Wi Brochure

What's in the Box

  • BrightLink 436Wi interactive projector
  • Interactive pen A (orange)7
  • 16' USB cable
  • Easy Interactive software
  • User's guide CD
  • Rechargeable batteries and charger
  • TeamBoard Draw!® CD
  • Quick setup guide
  • 15' power cord
  • 6' Computer cable (VGA)
  • Projector remote control
  • Batteries
  • User manual CD
  • Projector software CD
  • Quick Setup Sheet
  • Password protection sticker
  • Lens cover
  • Welcome kit
Warranty
Two-year projector limited warranty, Epson Road Service Program PrivateLine® dedicated toll-free support (U.S. and Canada only) and 90-day limited lamp warranty

The high-performance BrightLink 436Wi network-ready, short-throw projector and interactive pen integrate interactive functions into one machine without the constraints or expense of an interactive whiteboard. Share content from many sources (iPads2, tablets, smartphones, document cameras and more), then annotate directly on projected images — no PC required3. Two users can write simultaneously with dual pen support. Mount BrightLink 436Wi on a wall or set it on a table or desk. This portable projector can be taken from room to room. Setup is easy with auto calibration and no PC driver to install. The projector features HDMI connectivity, a built-in 16 W speaker and microphone jack. Get brilliant image quality and interactivity with the BrightLink 436Wi, from the #1 selling projector company.
  • 3x Brighter Colors and reliable performance — 3LCD, 3-chip technology*
  • One measurement of brightness is not enough — look for both high color brightness and high white brightness.
    The BrightLink 436Wi has:
        Color Brightness: 3000 lumens
        White Brightness: 3000 lumens

  • Built-in interactivity — powerful projector and pen combination provides a complete interactive solution without the need for expensive electronic whiteboards
  • PC-free annotations built in — write on projected images from your iPad®/iPod®, Android™2 document camera, Blu-ray® player or any source you can connect to the projector; write directly on ordinary whiteboards, PC-free3
  • Dual pen support — allows two users to annotate simultaneously, anywhere on the surface on which the image is projected (includes one pen; second pen sold separately)
  • Ultra-flexible interactivity — WXGA images from 53" up to 116" diagonally (68" to 113" when mounted on optional wall mount)
  • Long-life lamp — up to 6000-hour lamp life4
  • Flexible connectivity — RJ-45 LAN (with included software) and RS-232 connectivity; HDMI with HDCP support; USB and VGA
  • Convenient network accessibility — display content over the IP network from any networked location
  • Message broadcasting — broadcast announcements or emergency instructions over the network5
  • Epson's advanced networking and monitoring software — EasyMP® Monitor and Epson Network Projection software
  • Powerful communication features built in — built-in 16 W speaker, microphone input, and audio pass-through; closed-captioning decoder; additional inputs available to add additional speakers
  • Compatible with top interactive software — maximize your investment by utilizing familiar teaching applications such as Promethean ActivInspire®, SMART NotebookTM and MimioStudioTM by Mimio (Software sold separately)

Specifications

Projection System: Epson® 3LCD, 3-chip technology

Projection Method: Front / wall mount

Driving Method: Poly-silicon TFT Active Matrix

Pixel Number: 1,024,000 dots (1280 x 800) x 3

Color Brightness (Color Light Output): 3000 lumens1

White Brightness (White Light Output): 3000 lumens1

Interactive Color Brightness (Color Light Output): 3000 lumens1

Interactive White Brightness (White Light Output): 3000 lumens1

Aspect Ratio: 16:10

Native Resolution: 1280 x 800 (WXGA)

Resize: 640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1152 x 864 (SXGA), 1280 x 960 (SXGA2), 1280 x 1024 (SXGA3), 1366 x 768 (WXGA 60-2), 1440 x 900 (WXGA+), 1400 x 1050 (SXGA+), 1600 x 1200 (UXGA)

Lamp Type: 230 W UHE (E-TORL®)

Lamp Life:

  • ECO mode: Up to 6000 hours2
  • Normal mode: Up to 4000 hours2

Throw Ratio Range: 0.48 – 0.65

Size (projected distance):

  • 53" – 116" without wall mount
  • 68" – 113" with wall mount

Keystone Correction:

Manual:
  • Vertical: ±7 degrees
  • Horizontal: ±5 degrees

Contrast Ratio: Up to 3000:1

Color Reproduction: Up to 1.07 billion colors

Color Processing: 10 bit


Projection Lens

Type: Digital zoom / Manual focus

F-number: 1.80

Focal Length: 6.48 mm

Zoom Ratio: Digital zoom 1.0 – 1.35


Other

Display Performance:

  • NTSC: 480 lines
  • PAL: 576 lines
  • (Depends on observation of the multi-burst pattern)

Input Signal: NTSC / NTSC4.43 / PAL / M-PAL / N-PAL / PAL60 / SECAM

Interfaces:

  • Computer / component video: D-sub 15 pin x 2
  • S-video: Mini DIN x 1
  • Composite video: RCA (Yellow) x 1
  • Audio in: RCA x 1 (L and R), Mini stereo x 2
  • USB connector: Type B x 1 (USB display, audio and pen control)
  • USB connector: Type A x 1 (USB memory/document camera)
  • HDMI x 1
  • RJ-45 x 1
  • Serial: RS-232c x 1
  • Monitor out: D-sub 15pin x 1
  • Audio out: Mini stereo x 1
  • Microphone: Mini stereo x 1
  • Wireless LAN port: 802.11 b/g/n

Speaker: 16 W mono

Operating Temperature: 41° to 95° F (5° to 35° C)

Power Supply Voltage: 100 – 240 V ±10%, 50/60 Hz AC

Power Consumption:

  • ECO mode: 254 W
  • Normal mode: 344 W
  • Communication on: 6.80 W standby
  • Communication off: 0.28 W standby

Fan Noise:

  • ECO mode: 29 dB
  • Normal mode: 37 dB

Security: Kensington® security lock port, padlock and security cable hole, password protect function


Dimensions

Including feet: 13.6" x 11.7" x 6.2" (W x D x H)

Excluding feet: 13.6" x 10.9" x 4.1" (W x D x H)

Weight: 9.1 lb


Remote Control

Features: Source search, video, LAN, computer, USB, power, aspect, color mode, volume, e-zoom, A/V mute, freeze, menu, page up and down, help, auto, mouse functions, user, esc, Pen mode

Operating Angle:

  • Right / Left: ±30 degrees
  • Upper / Lower: 10 to 70 degrees

Operating Distance: 19.7' (6 m)


Interactive Specifications

Interactive Technology: infrared, 940 nm

Interactive Area:

BrightLink 436Wi
  • 68" to 113" diagonal (16:10, WXGA) wall mounted
  • 53" to 116" without mount

Interactive Modes: Computer interactivity/input: Interactive and Whiteboard modes, Dual user

Calibration Method: Automatic or Manual

Interactive Connectivity: USB Type A/B

System Compatibility:

    • Connection to the computer: USB
Epson Easy Interactive Driver
  • Windows® and Linux: no driver required
  • Macintosh®: Mac OS® X 10.3.9, 10.4.x, 10.5.x, 10.6.x, 10.7.x, 10.8.x (Included in the box. Also available for unlimited download at Epson.com support page)

PC-Free Annotation

PC-Free Annotation Tools: Yes

PC-Free Annotation Sources: document cameras, DVD/Blu-Ray player, iPod/iPad devices3 (devices not included)


Interactive Software

Easy Interactive Tools Compatibility:

System compatibility
  • Microsoft Windows XP SP2, Windows XP SP3 (Home Edition/Professional), Windows Vista®4, Windows Vista SP14, Windows Vista SP24 (All editions except for Starter), Windows 75, Windows 7 SP15 (All editions except for Starter), Windows 8
  • Macintosh OS X 10.4.x, Mac OS X 10.5.x, Mac OS X 10.6.x, Mac OS X 10.7.x, Mac OS X 10.8.x

TeamBoard Draw Compatibility : (TeamBoard Draw is included)

System compatibility
  • Windows XP SP3 (32-bit), Windows Vista (32- or 64-bit), Windows 7 (32- or 64-bit), Quicktime player and Flash player installed
  • Macintosh Intel Mac OS X 10.5x or later

Interactive Input Device

Type of Interactive Input Device: Digital pen (one included)

Multiple Pen Support: Yes6

Interactive Pen Functions: Mouse functions (left and right click), Electronic pen, LED battery status indicator

Interactive Pen Power: AAA batteries, rechargeable

Compatible Pen Battery Types: SANYO eneloop®(HR-3UTG / HR-3UTGA)7, Manganese dry cell, alkaline dry cell

Interactive Pen Dimensions: 6.5" x 0.98" (L x W)

Interactive Pen Weight: 1.2 oz.


1 Color brightness (color light output) and white brightness (white light output) will vary depending on usage conditions. Color light output measured in accordance with IDMS 15.4; white light output measured in accordance with ISO 21118.

2 Functionality may vary depending on hardware, application, and/or provider restrictions or limitations. Devices and cables not included.

3 Any source that is directly connected to your projector and appears as a source to be accessed by the projector’s remote control.

4 Lamp life will vary depending upon mode selected, environmental conditions and usage. Lamp brightness decreases over time.

5 Works only with Epson projectors that support presentation over the network capability.

6 SmartWay is an innovative partnership of the U.S. Environmental Protection Agency that reduces greenhouse gases and other air pollutants and improves fuel efficiency.

7 Additional pens available for purchase. For dual pen support, an orange and blue pen are required.
