Ricoh X4241N short-throw Business Projector

MSRP: $1,175.00
Price: $799.00
You Save: $376.00
Item Number: RCX4241N
Manufacturer: Ricoh
Mfg Part No: 432011
Condition: New
free shipping

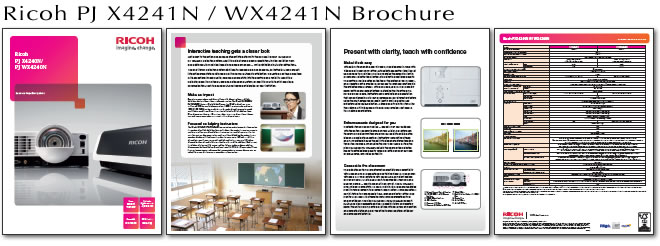

See full Brochure for Ricoh PJ WX4241N

Accessories Packaged with Projector

Cables   RGB Cable (3m) and 3-pin Power Cord (3m)
CD-ROM   Network Utility, JPEG Conversion Tool, Projector Management Utility, Instruction Manual, Instruction Manual for Projector Management Utility
Remote Control   Yes

General Features

  • Grab and keep their attention
    Give yourself an edge when it comes to teaching. Present information in interesting, unusual ways with the RICOH PJ WX4241N short-throw, widescreen projector. Designed to give you the full picture even in smaller spaces, the PJ WX4241N displays your content in vibrant, high-definition color and clarity. It makes it easy to:
    • Play regular or 3D DVDs using HDMI — no additional audio equipment required.
    • Project MPEG4 files from a USB drive.
    • Present content from your tablet, which you can connect wirelessly to the projector.
  • Capture information from your whiteboard
    Turn your plain whiteboard into a digital whiteboard with the optional interactive tool kit. Then you can write, draw, save and share what's on the board with the class. Work smarter and save time by not having to transfer information from the board to paper.
  • Remove classroom distractions
    Keep students focused on the task at hand. Mount the PJ WX4241N on the ceiling so it's out of the way of children of all ages. Or, place it at the front edge of the table as close as two feet from the wall —and because you aren't standing between the light source and the screen, you get images with no shadows or glare. Even better, the cables are out of the way and fan noise is directed away from the class.
  • Get creative with 360-degree projection
    Do something unexpected to spice up a lesson or get the attention of your class — project images or information on the ceiling or floor. Keystone correction automatically fixes any image distortion.
  • Connect via wired or wireless or both
    With multiple connectivity choices, you can make it easy for teachers, administrators, students and guests to access the information they need when they need it. You can use wired or wireless networking or both at the same time, which is a great way to keep authorized users on — and guests off — your secure network.

Instruction Support Features

  • Leveraging innovative, ultra-high definition lens technology, the PJ WX4240N mounts easily to a ceiling or wall and allows instructors to stand closer to and point out elements on the presentation surface without blocking the projection or creating shadows.
  • The projection system displays crisp, clear images up to 140 inches tall from close distances. It can even produce high-quality images up to 60 inches diagonally when placed within two feet from the wall. In addition, fixed mount installation eliminates daily setup and breakdown tasks, reduces cabling, discourages theft and helps extend projector life.
  • With the Presentation Timer feature, instructors can rehearse their presentation to ensure classes stay on schedule or use the timer as a countdown when testing.

Presentation Features

  • With automatic balancing, every image can be displayed in-focus with vivid colors in nearly any setting.
  • Auto Brightness control simplifies set up and helps to maximize lamp life by sensing the amount of light in a room and adjusting the brightness to deliver the best image quality.
  • The control panel is located on the top of the system for easy access, and a remote control provides easy access to advanced functions via the projected menu screens.
  • For larger classrooms, instructors can coordinate one presentation that can be viewed in up to four classrooms on four different projectors using the multi-screen mode. Easily identify available networked projectors using QuickProjection.
  • A simple one-time installation using the Network Utility (included on the CD-ROM) provides fast access to all networked projectors.
  • With the optional eBeam® technology from Luidia®, presenters can transform an ordinary whiteboard or wall surface into an interactive display.
  • A special stylus captures instructors’ handwriting strokes and many systems include the ability to display pre-stored teaching templates and maps.
  • When using the Wall Color Mode feature, the Ricoh PJ WX4240N adjusts the colors of the projected image to optimize image quality when presenting on color surfaces or chalkboards, enhancing portability.

Network Features

  • The projection system offers Ethernet connectivity and compatibility with Macs and PCs so educational and training videos can be shown with ease.
  • Carry presentations with you on USB-compliant devices or memory cards. Use the HDMI port to play movies from DVD and Blue-ray players — even those shot in 3D format.
  • The PJ WX4240N offers wireless connectivity, so you can eliminate cables and maximize mobility from classroom to classroom. Each system allows educational administrators to manage basic tasks, change projector settings and monitor user access to streamline workflow and promote optimal energy efficiency.
  • Each system allows educational administrators to manage basic tasks, change projector settings and monitor user access to streamline workflow and promote optimal energy efficiency.
  • The Ricoh PJ WX4240N supports PJLink and Ricoh @Remote service, so administrators can remotely power the unit on or off, configure settings with ease from any location and generate status and error reporting to ensure optimal efficiency and enhance projector life.


System Specifications

Projector Part Number: 432011
Replacement Lamp Type 17 Part Number: 512822
3D Glasses Type 2 Part Number: 512511
Projection System: Single Chip Digital Light Processing (DLP)
Resolution: XGA – 1024 x 768 dpi (786,432 Picture Elements)
White Light Output (brightness): 3,300 lm
Color Reproduction: 1,073,000,000 Colors
Contrast Ratio: 13000:1
Screen Size / Projection Distance: 50" – 400"/23.2" – 200"
Lamp Type: High Pressure Mercury (250W)
Lamp Life: Standard Mode: 3,500 hours; Eco Mode: 5,000 hours
Video Compatible Signal: NTSC, PAL, SECAM, PAL-M, PAL-N, PAL-60, NTSC 4.43, 60 Hz (Mono), 50 Hz (Mono)
USB Memory Compatible File Format³: JPEG, MPEG2, MPEG4
Throw Ratio: 0.58
Projection Modes: Front (Standard), Rear, Rear Ceiling, Front Ceiling, 360° Tilt Free

Other Primary Features:
AV Mute (Blank), Freeze, Re-size (Magnify), Auto Keystone Correction (vertical/horizontal), Digital Zoom (80% – 100% Reduction), Password Protection, Wall Color Mode, Key Lock, Security Bar, Kensington Lock, User Logo, Multi-screen Projection (1 PC to 4 Projectors), Eco Mode, Automatic Brightness Control, Carbon Meter, Closed Captioning, Color Universal Design, Presentation Timer, Blu-ray 3D Projection Ready, Timer Set On/Off, Interactive Ready, Projector Management, Digital Camera, Crestron, AMX and DLNA Compatible, Firmware Update, PJLink, PC Free Presentation (JPEG/MPEG2/MPEG4 via USB)

Supported Languages:
Arabic, Chinese (Traditional), Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Indonesian, Italian, Japanese, Norwegian, Polish, Portuguese, Romanian, Russian, Spanish, Swedish, Thai, Turkish

Built-in Speaker: 10W Mono
Weight: Approx. 6.8 lb. (3.1 kg)
Dimensions (WxDxH) (excluding protrusions): 11.69" x 9.25" x 3.93" (297 x 235 x 100 mm)
Fan Noise: Standard Mode: 38 dB or less; Eco Mode: 32 dB or less
Operating Environment: Temperature: 41˚ F to 95˚ F (5˚ C to 35˚ C); Humidity: 30% to 70% (no condensation)
Power: 100 V – 240 V, 50/60 Hz

Liquid Crystal Panel

Aspect Ratio

Analog RGB Compatible Scanning Frequency

15 – 100 kHz
23 – 85 Hz

Projection Lens

Lens Focal Length (from projection window to the screen)
0.27" (6.96 mm)
Zoom Ratio
Zoom / Focus
Zoom: N/A; Focus: Manual


RGB Input
Mini D-sub 15 pin x 1
RGB Output
Mini D-sub 15 pin x 1 (input and change over)
Video Input
RCA 1 pin x 1
Audio Input
3.5 mm diameter stereo mini jack x 1
Audio Output
3.5 mm diameter stereo mini jack x 1
USB 2.0 Type A x 1 (JPEG/MPEG)
Wired LAN
10BASE-T/100BASE-TX/1000BASE-T x 1 (RJ45)
Wireless LAN
HDMI™ Terminal x 1

Operating Systems

Network Utility
Windows Vista SP2 (Ultimate/Business/HomePremium/HomeBasic) 32/64bit; Windows 7 SP1 (Ultimate/Enterprise/Professional/HomePremium) 32/64bit; Windows 8 Pro/Enterprise 32/64bit; Windows 8.1 Pro/Enterprise 32bit/64bit; Mac OS X (10.7 – 10.9)
JPEG Conversion Tool4
Windows XP Professional X64; Windows Vista SP2 (Ultimate/Business/HomePremium/HomeBasic) 32/64bit; Windows 7 SP1 (Ultimate/Enterprise/Professional/HomePremium) 32/64bit; Windows 8 Pro/Enterprise 32/64bit; Windows 8.1 Pro/Enterprise 32bit/64bit
Projector Management Utility4
Windows Vista SP2 (Ultimate/Business/HomePremium/HomeBasic) 32/64bit; Windows 7 SP1 (Ultimate/Enterprise/Professional/HomePremium) 32/64bit; Windows Server 2008 SP2 32bit/64bit; Windows Server 2008R2 SP1 64bit; Windows 8 Pro/Enterprise 32/64bit; Windows 8.1 Pro/Enterprise 32bit/64bit

Power Consumption

While Operating
Less than 316W/Eco Mode: 209W
Standby Network OFF
Standby (Wired Network On)
Less than 1.4W
¹ Overall mean values for product at time of shipping are indicated in accordance with the JIS X6911-2003 data projector specification format. ² Preset to this range of supported signals. Signals not present by display even if they are within this range. ³ When using the USB terminal for computer-free presentations, there is no guarantee images will display. They may not display because of the file. 4 Not supported on 64-bit version. Warranty: The Ricoh PJ Series is under warranty against defects for a period of three years from the date of purchase. Consumables are under warranty for a period of 90 days from the date of purchase or until depleted, whichever comes first. Please refer to warranty documents shipped with the product for more details. For maximum performance and yield, we recommend using genuine Ricoh parts and consumables.
